2″ Geoflow Ultra headworks WHWUltra–2F–A


SKU: 8691 Categories: , ,


2″ Geoflow Ultra headworks WHWUltra–2F–A

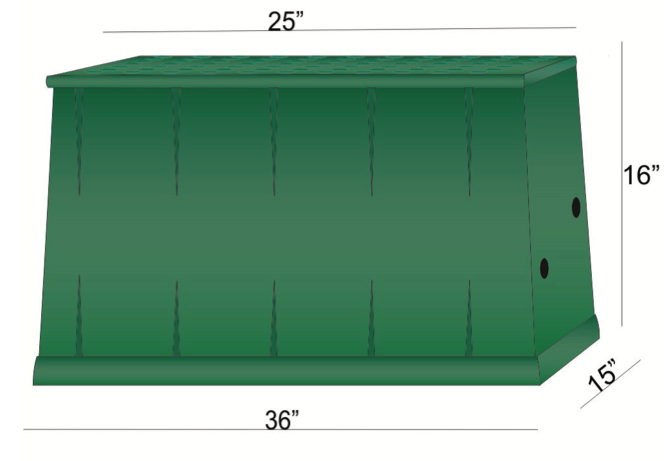

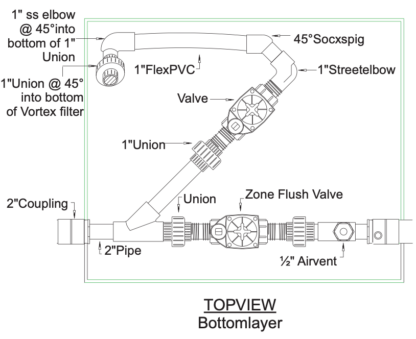

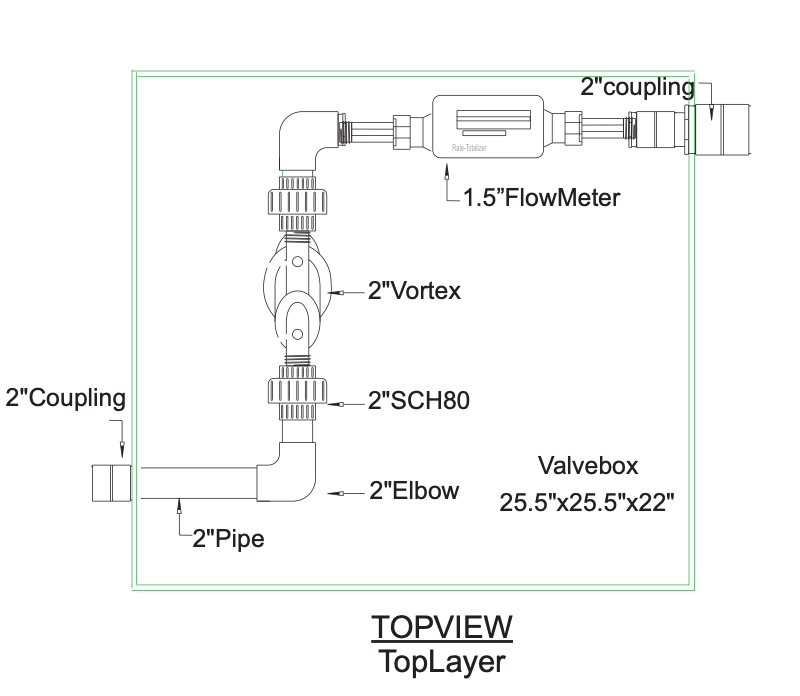

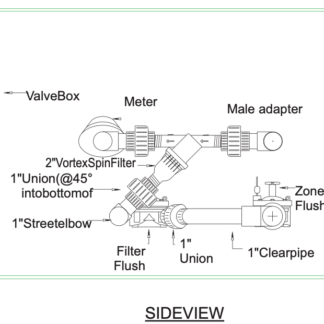

The Waste flow Head work is a pre-assembled unit including 2″ Vortex filter, Automatic Zone valves, Water Meter, fittings and pressure gauges mounted inside a box for direct burial, or inside a pump tank riser. It is installed between the pump and the field to filter out fine particles from entering the treatment field, and to flush fine particles that may collect in the drip field. Recommended for maximum flow rate of 30 gallons per minute and 600 gallons per day.

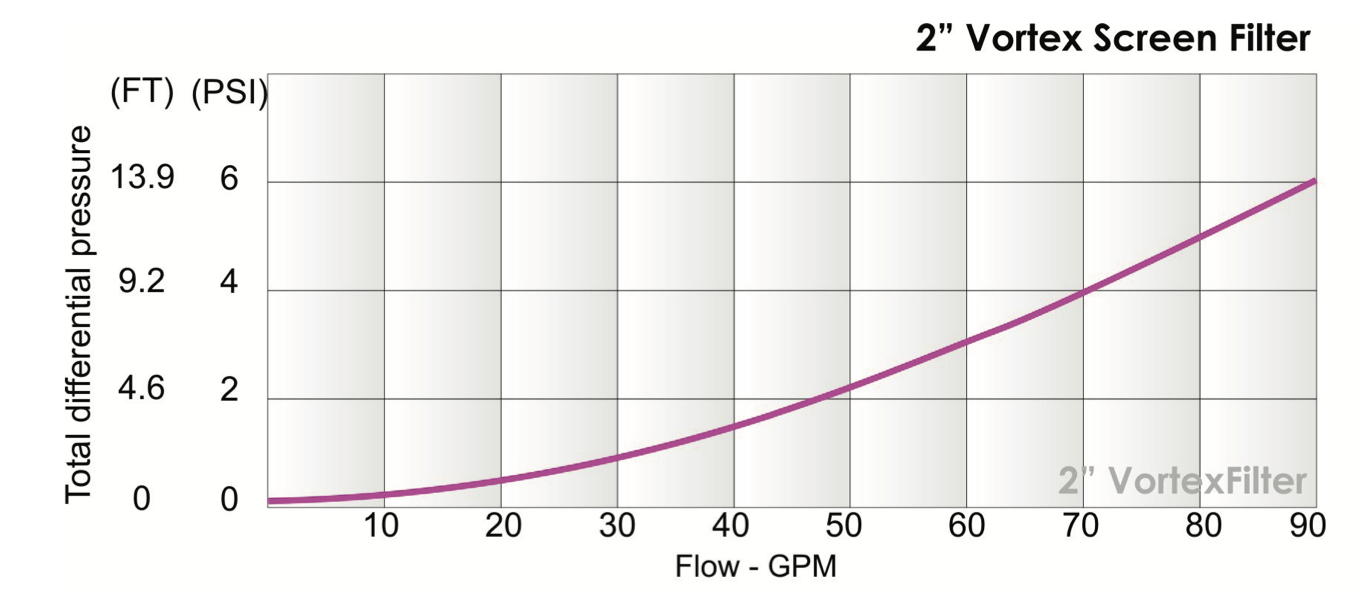

Vortex Filter PDF

Additional information

Weight 20 oz
Dimensions 26 × 26 × 12 in
