Description
Description
Orenco high-head effluent pumps are manufactured specifically for wastewater applications, to transport filtered effluent from septic tanks. High-head capabilities make them the ideal choice for STEP effluent sewer systems. Steep pump curves provide high-pressure capacity to clear plugged orifices in pressurized distribution systems. Orenco high-head effluent pumps possess a high cycling capability (up to 300 cycles/day on most models), which is needed for optimum treatment in many of today’s high performance onsite systems. 60-Hz 1/2 hp to 1-1/2 hp pumps are UL and CSA listed for use in effluent. 5-year extended warranty included with all PF series pumps. PF pumps include an SOOW type cable, suitable for Class I, Division 1 and 2 applications (check local codes).
Orenco PF Series High Head Effluent Pump Typical Application
- Residential Septic Tank Effluent
- Disposal System Dosing
- Treatment System Dosing
Orenco PF Series High Head Effluent Pump Technical Details
- Minimum 24-Hour Run-Dry Capability with No Deterioration in Pump Life or Performance
- Patented 1⁄8″ (3-mm) Bypass Orifice to Ensure Flow Recirculation for Motor Cooling and to Prevent Air Bind
- Liquid End Repair Kits Available for Better Long-Term Cost of Ownership
- TRI-SEAL™ Floating Impeller Design on 10, 20, and 30 gpm (0.6, 1.3, and 1.9 L/sec) Models; floating stack design on 50 and 75 gpm (3.2 and 4.7 L/sec) models
- Franklin Electric Super Stainless Motor, Rated for Continuous use and Frequent Cycling
- Type SOOW 600-V Motor Cable (suitable for Class I, Division 1and Division 2 applications)
Specifications

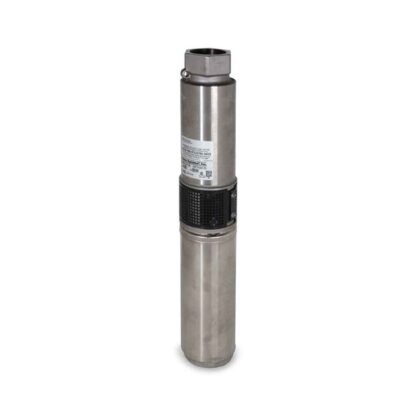

Orenco PF200512 High Head Effluent Pump Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 6.5
- MAXIMUM HEAD: 150′
- MAXIMUM CAPACITY: 30 GPM
- DISCHARGE PIPE SIZE: 1.25” FPT
- IMPELLER TYPE: Floating Impeller Design
- CORD LENGTH: 10′ Type SOOW
- BODY CONSTRUCTION: Stainless Steel
- DUTY RATING: Continuous
