GeoFlow Ultra. 1.5 in BioDisc Filter Headworks, Semi-Auto WHWU-D-1.5F-A-PLS


SKU: 8668 Categories: , , ,


BioDisc Filter Headworks

Pre-assembled Headworks – ULTRA – Disc FiltersGeoFlow Ultra. 1.5 in BioDisc Filters, max 30 gpm, 1 in digital flow meter. Semi-Auto WHWU-D-1.5F-A-PLS

Large fiberglass box and flow meter included

Ultra. 1.5” BioDisc Filters, max 30 gpm, 1” pulse flow meter. Semi-Aut

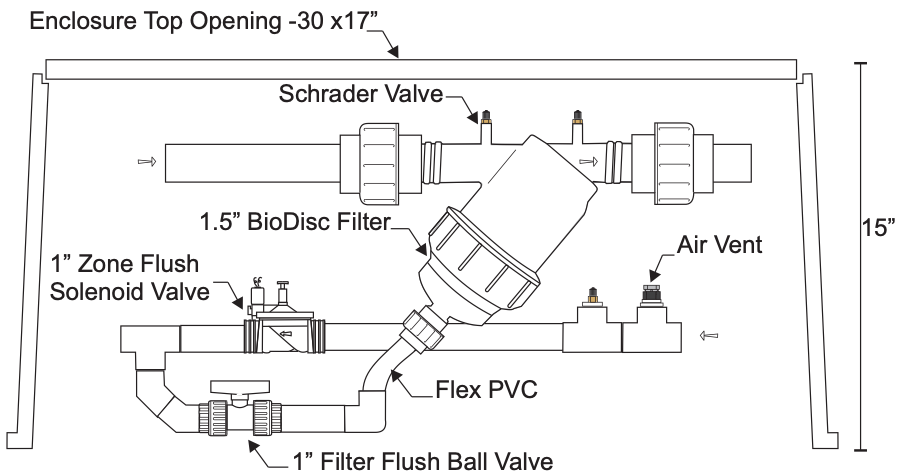

The Wasteflow Headwork is a pre-assembled unit including filters, valves, fittings and pressure gauges mounted inside

a box for direct burial, or inside a pump tank risier. It is installed between the pump and the field to filter out fine particles from entering the treatment field, and to flush fine particles that may collect in the dripfield. recommended for maximum flow rate of 30gallons per minute and 600 gallons per day.


BioDisc Filter PDF

Additional information

Weight 320 oz
Dimensions 36 × 20 × 20 in
