Septic-Direct Drip Control Panel — 1 Zone, Simplex Automatic Flush (Model: SD-DRP-1): Direct Replacement for Geoflow Model: G-GEO1-SIM-AUT-B
Septic-Direct puts its knowledge to work for you.

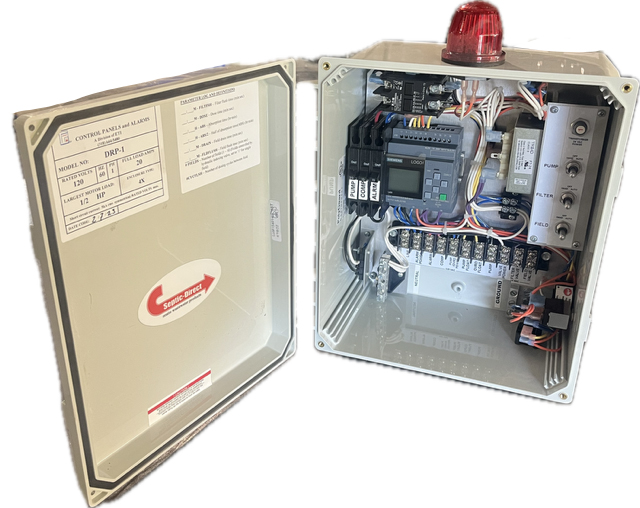

The Septic-Direct 1-Zone Simplex Control Panel is a compact, fully automated control system built for single-zone drip dispersal septic and wastewater systems. It operates a single pump in simplex configuration and includes automatic filter flush and automatic field flush functionality, reducing routine maintenance and helping protect the drip field from clogging and biomat buildup without manual intervention.
Sized for smaller residential and light-duty installations where a single dispersal zone is sufficient, this panel runs on standard 120VAC single-phase power and accommodates pump motors up to 1/2HP, making it compatible with a wide range of simplex pump stations.
Key Features
Automatic filter and field flush cycles eliminate the need for manual flushing. Simplex pump control keeps the system straightforward to install and service. Single-zone design suits smaller drip fields and lower-flow applications.
Specifications
Zones: 1 | Voltage: 120VAC, single phase (1P) | Pump Configuration: Simplex | Max Motor Load: 1/2HP | Filter/Field Flush: Automatic | Application: Drip dispersal wastewater/septic systems
