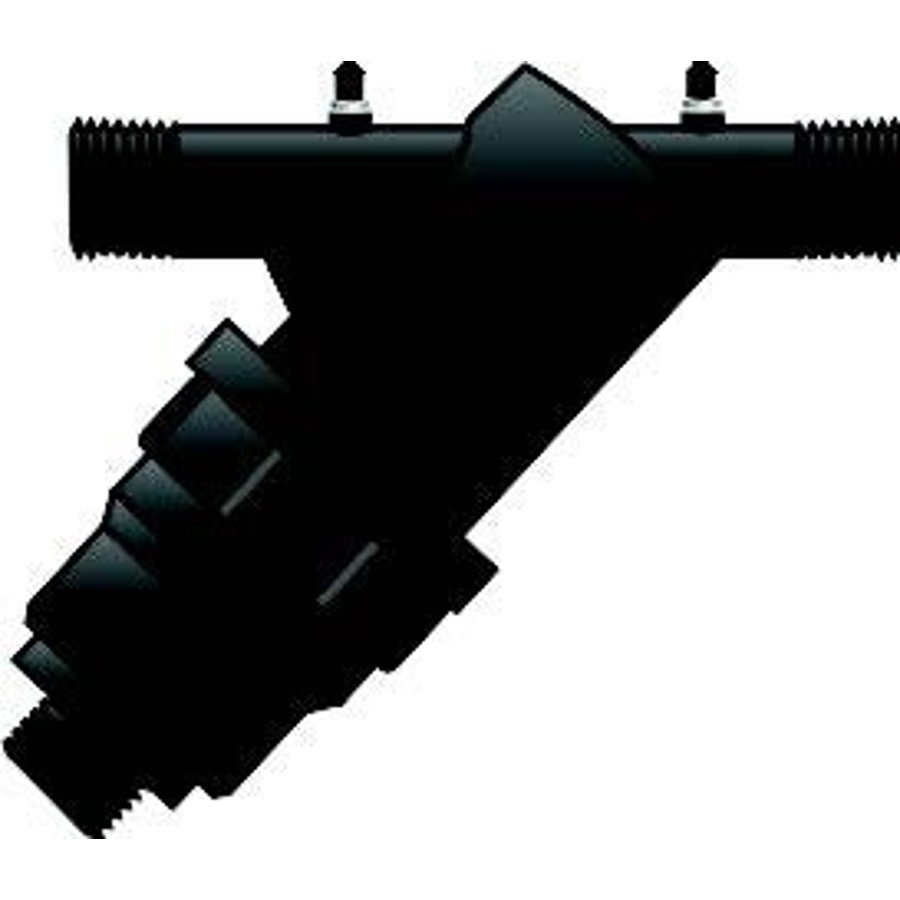

GeoFlow 1″ x 5-1/4″ Screen Filter — AP4E-1F
Rated for up to 20 GPM
Protect your pressure-compensating drip dispersal system from clogging with the GeoFlow AP4E-1F screen filter. Installed upstream of drip tubing and emitters, this compact 1″ inline filter strains out sand, silt, and organic debris before it can reach and foul the drip line’s pressure-compensating emitters — helping maintain even flow distribution and extending system service life. Its low-profile 5-1/4″ body drops into standard 1″ supply lines with minimal added footprint, and the filter element is easily removed for periodic cleaning or replacement during routine system maintenance.
Specifications:
| Spec | Value |
|---|---|
| Model | AP4E-1F |
| Port Size | 1″ |
| Overall Length | 5-1/4″ |
| Filter Type | Screen (150 mesh) element; Black Ring |
| Connection | Threaded NPT, inline |
| Typical Use | Pretreatment/protection ahead of pressure-compensating drip dispersal tubing |
| Application | Septic/onsite wastewater drip irrigation systems |
Plastic body. MIPT. Up to 20 gpm.
