Description
VSI Pump Tanks are rugged, tough and watertight. Tanks range in diameter from 24″ – 60″ and in height from 4′ – 20′. Every tank is vacuum tested for leak detection. Concrete anti-floatation ballasts keep tanks in the ground when encountered with high groundwater situations. Risers can be added as needed to accommodate grade level access.

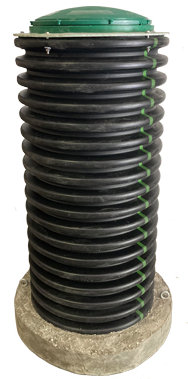

VSI 100 Gallon Pump Tank (Model 100PT-245) Specs.
| Product | Dimensions | Model | Total Gallons | Area (in^2) | Gallons/in. | External Hight (in.) | Internal Hight (in.) | Diameter (in) | Thickness (in) | Weight (lbs) |
| 100 Gallon Pump Tank | 24″ dia. x 63″ tall (approx 5′) | 100PT-245 | 111 | 455.18 | 1.97 | 62.04 | 56.12 | 36 | 6 | 464 |
